The FuelGraph tool has now been around for about a decade. It was and remains a simple yet powerful Excel-based tool to understand the Canadian Fire Behaviour Prediction (FBP) System. It still is that, but at some point it also started morphing into a tool for visualizing the CCP. That version has become a fully separate app (FuelDash) to avoid confusion.

FuelGraph remains a useful tool for graphically comparing predicted equilibrium spread rate and fire intensity between FBP System fuel types. There are now desktop and online versions (see below), and they are both bilingual.

————————————-

Pour les utilisateurs francophones, l’appli a maintenant été renommé avec un nouveau titre (CombustiGraph) et une option pour langue francaise. Dans la version Excel, trouvez le bouton déroulant a la base de la page principale (VP). La version en ligne est aussi bilingue.

————————————–

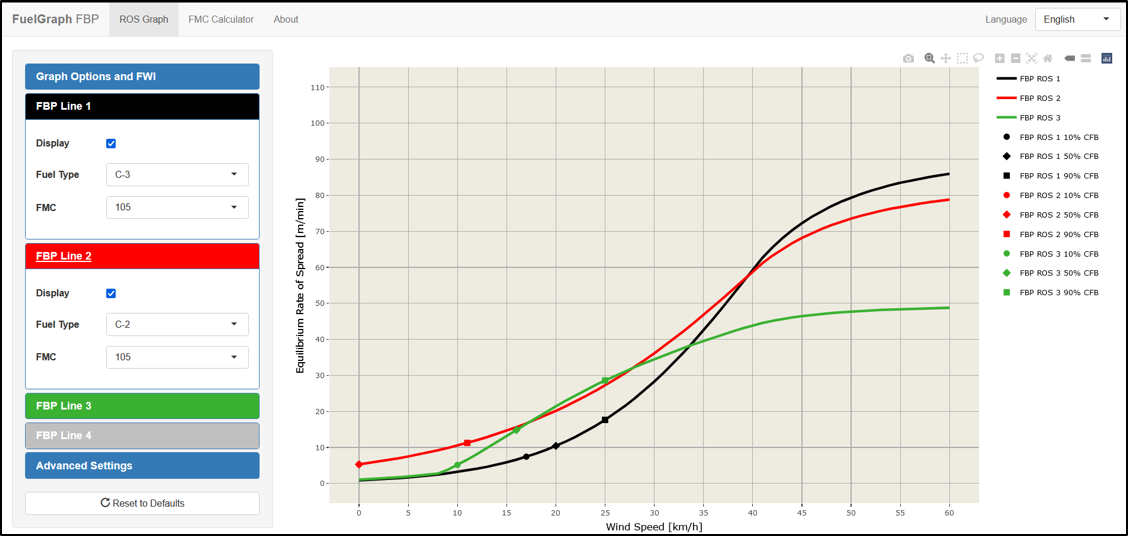

In addition to the Excel desktop version, we have now developed an online interactive version that will be easier to access for outside users.

At the present time, the current version is linked below in both forms:

FuelGraphR-CombustiGraph-R online: Shiny app

FuelGraph-CombustiGraph – desktop, v5.11: Excel
